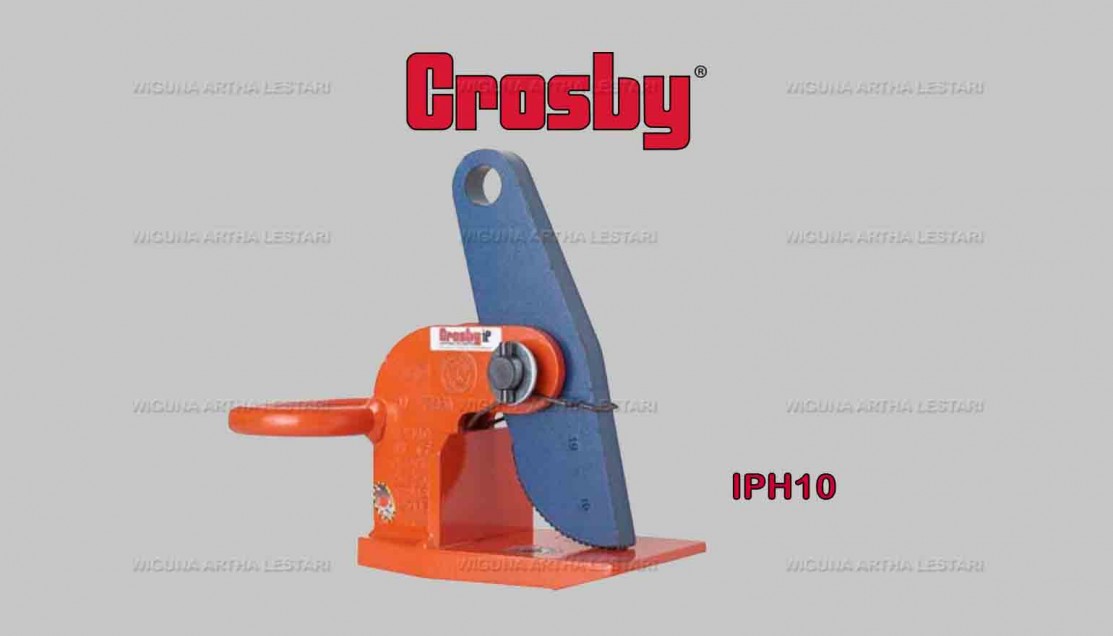

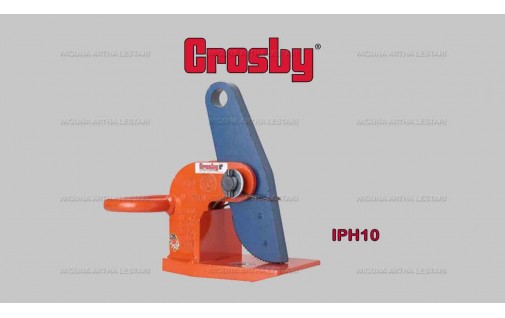

    HORIZONTAL LIFTING CLAMP IPH10

    CROSBY IP - Horizontal Lifting Clamp with spring loaded tension have a pretension feature that allows the user to attach the clamps to the material for horizontal lifting and transfer of non-sagging material. These clamps must be used in pairs or more.
    The IPH10E horizontal lifting clamps are for use in the lifting and transfer in horizontal position of non-sagging materials or of bundles of non-sagging material. These clamps must be used in pairs or more.

    Product Details



    BENEFITS
    For Horizontal Lift and Transfer with Pretension System [ IPH10 ]
    • Available in capacities of .5 thru 12 metric tons.
    • Jaw openings available: 0” to 4.75”.
    • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
    • Individually Proof Tested to 2 times the Working Load Limit with certification.
    • Company name (Crosby IP), logo, Working Load Limit and jaw opening permanently stamped on body.
    • Each product is individually serialized, with the serial number and Proof
    • Load test date stamped on body. User manual with test certificate is included with each clamp.
    • Maintenance and repair kits are available

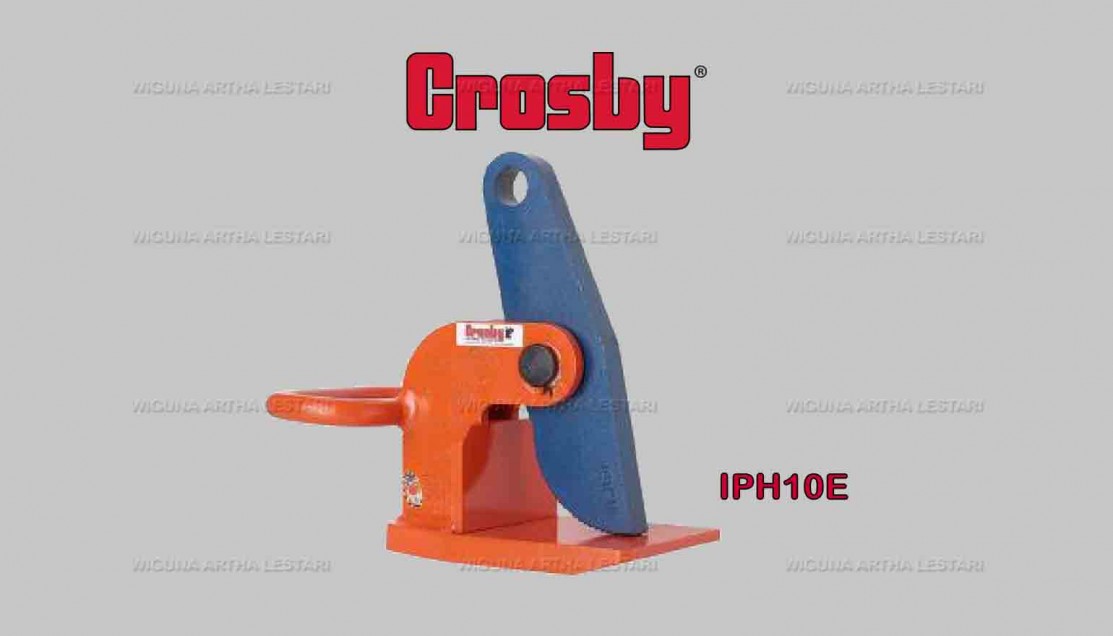

    For horizontal lifting and transfer [ Model IPH10E ]
    • Available in capacities of 2.0 thru 25 metric tons.
    • Wide variety of jaw openings available: 0 to 4.75”.
    • Welded alloy steel body for strength and smaller size. Forged alloy, components where required.
    • Equipped with handle for easy placement.
    • Individually Proof Tested to 2 times the Working Load Limit with certification.
    • Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
    • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
    • Maintenance and repair spare kits are available.



    For more information contact us

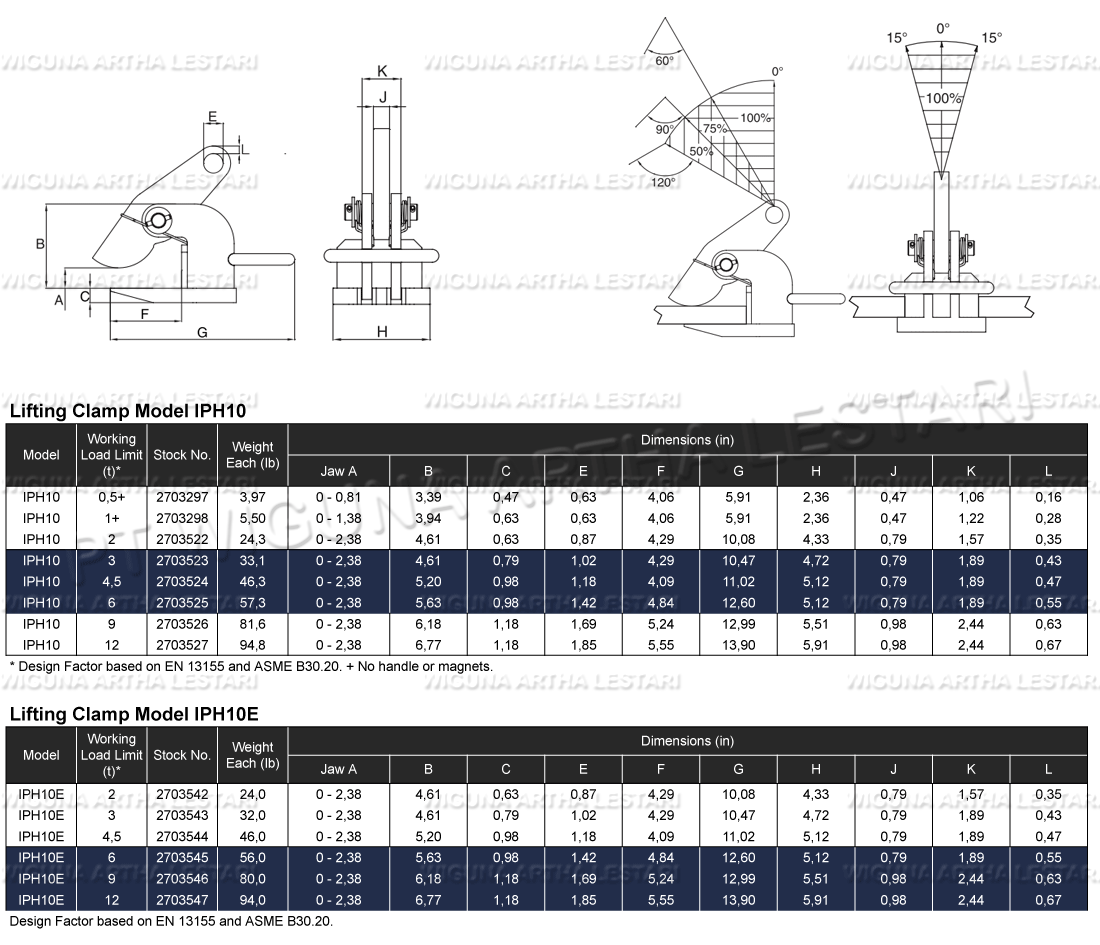

    Specification
