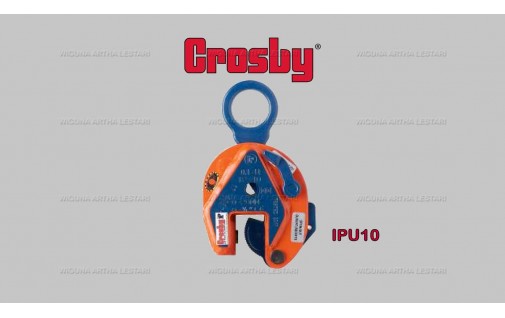

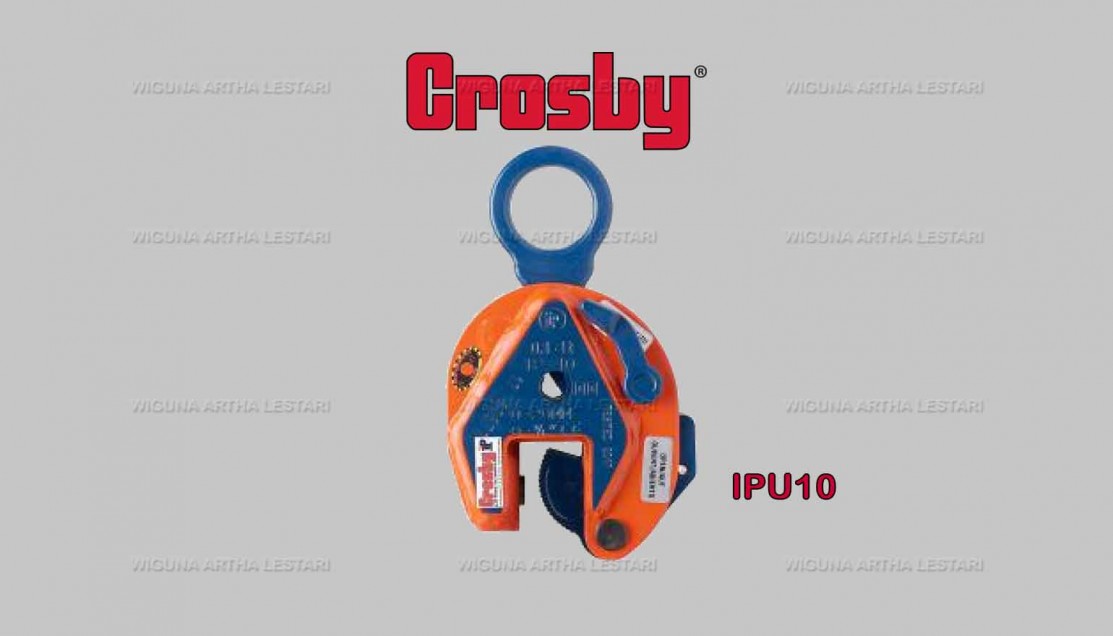

    VERTICAL LIFTING CLAMP IPU10

    CROSBY IP - Vertical Lifting Clamp - The IPU10 vertical lifting clamp is used for lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed. The hinged hoisting eye allows for the clamp to place and lift the load from any direction, or with a multiple leg sling without side-loading the clamp.

    Product Details



    BENEFITS
    Universal - for lifting in any direction
    • Available in capacities of .5 thru 30 metric tons (higher Working Load Limits are available upon request).
    • Wide variety of jaw openings available: 0” to 6.13”.
    • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
    • Individually Proof Tested to 2 times the Working Load Limit with certification.
    • Company name (Crosby IP), logo, Working Load Limit and jaw opening permanently stamped on body.
    • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
    • Available in a variety of styles:
      • IPU10 - Standard clamp for materials with a surface hardness to 363HV10 (345 HB).
      • IPU10J - Larger jaw opening.
      • IPU10S - For use with stainless steel material.
      • IPU10H - For use with materials with a surface hardness to 472HV10 (450 HB).
    • Full 180° turning range for material transfer, turning or moving.
    • Lock open, lock closed ability with latch for pretension on material and then release of material.
    • For use with materials with a surface hardness to 279HV10. Only 5% minimum WLL is needed.
    • Maintenance and repair kits are available.
    • Minimum WLL is 5% of maximum WLL for .5t IPU10 only.
    • Minimum WLL is 10% of maximum WLL for all other IPU10, IPU10J, IPU10S, IPU10H clamps.



    For more information contact us

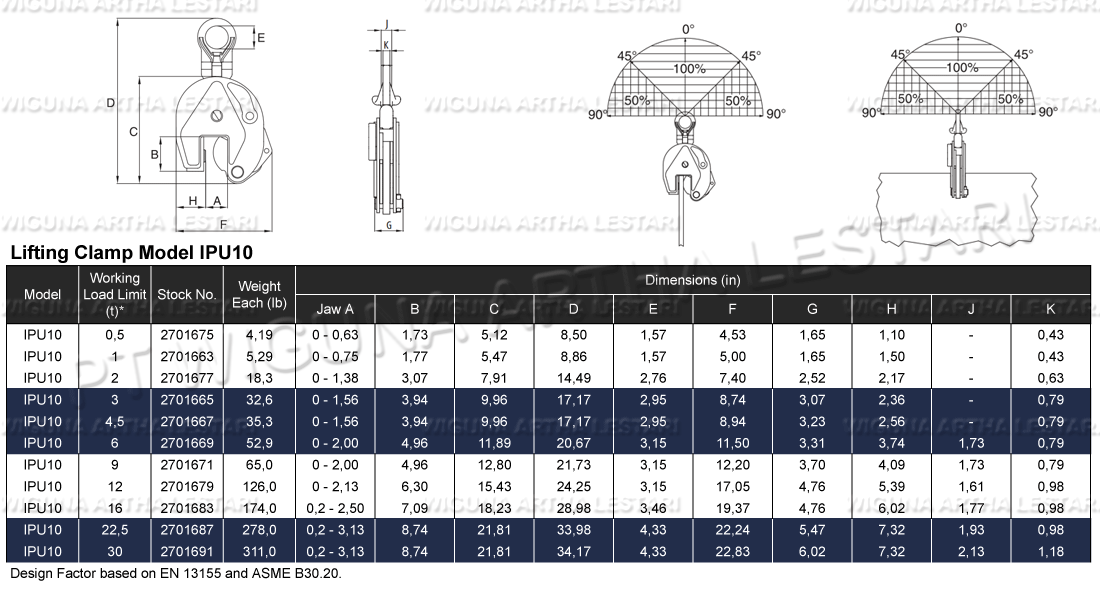

    Specification

    Specification

    zoom

    PLEASE FILL PRODUCT QUESTIONAIRE FORM FOR DETAILS
